SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 300 Mbps

5G Wi-Fi Transmission Rate: None

Application: HOME

Brand Name: olaf

Choice: yes

LAN Ports: 1

Max. LAN Data Rate: 300Mbps

Number of USB Interfaces: None

Origin: Mainland China

Package: Yes

Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n

Supports WDS: Yes

Supports WPS: Yes

Type: WireLess

WAN Ports: 1 x10/100Mbps

Wi-Fi Supported Frequency: 2.4G

Wi-Fi Transmission Standard: 802.11b

Wired Transfer Rate: 10/100Mbps

With Modem Function: No

semi_Choice: yes

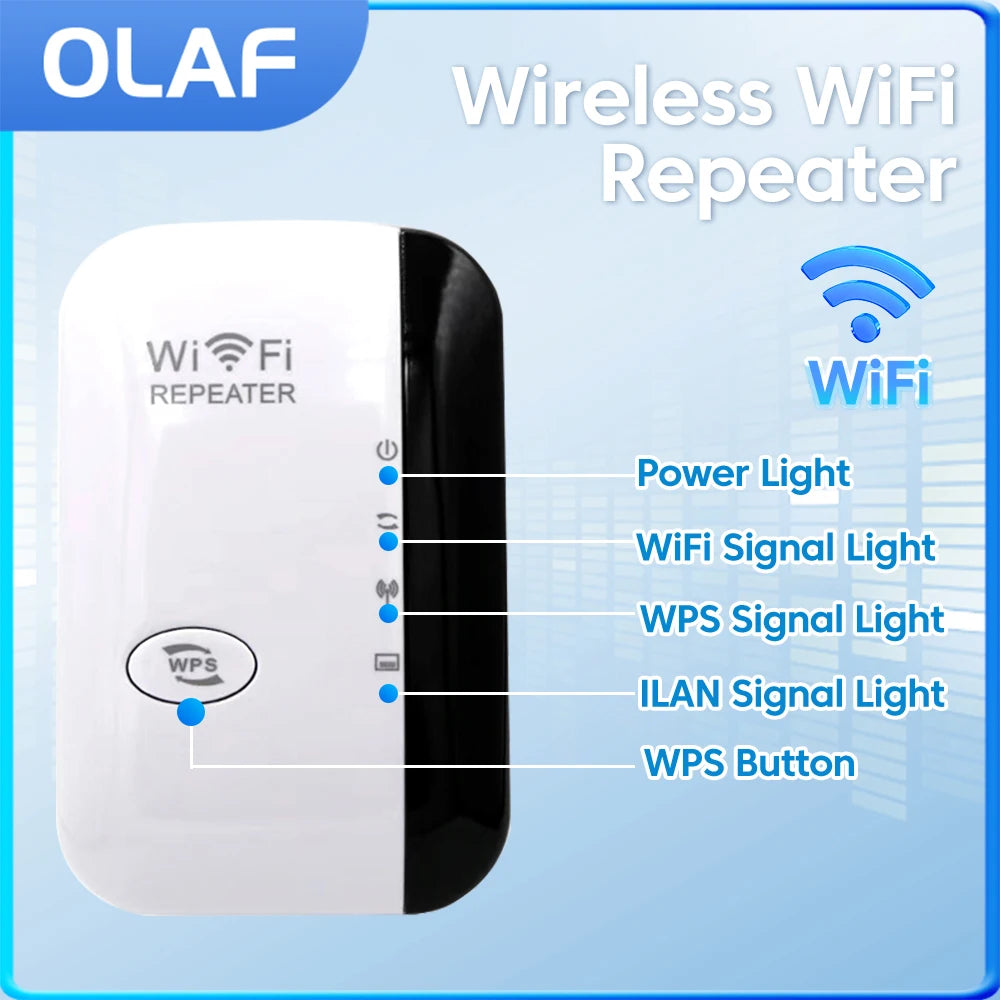

Hardware parameters

Interface: One 10/100M LAN/WAN

Antenna: 2xPCB built-in antenna

Button: Reset button

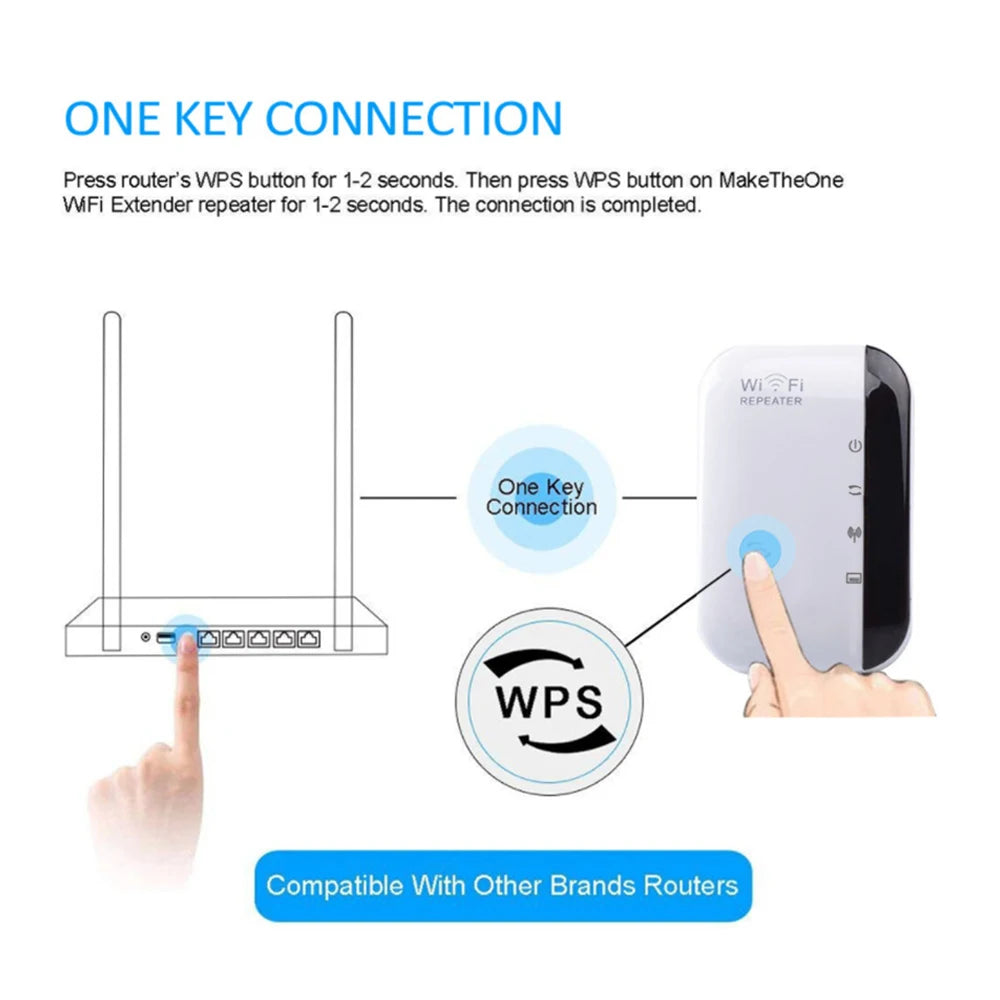

WPS Quick Encryption Button

Indicator light: POWER is constantly on, indicating that the power supply is normal

                        LAN on indicates that the link is flashing, indicating that data is being received or transmitted

                        WLAN on indicates that the wireless link is flashing, indicating that data is being received or transmitted

Wireless function

Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency: 2.412-2.484GHz

Wireless speed: sending 300M receiving 300M

Transmission power: 13-17DBm

Receiving sensitivity: -68dBm@10 %-  -90dBm@10 %-

Encryption method: 64/128/152 bit WEP/WPA/WPA 2

Software parameters

Default setting: Login IP address: 192.168.11.1

Login username/password: admin/admin

Default mode: AP

DHCP: server mode, client mode

Wireless function: Enable/disable SSID broadcasting

                              Channel

                              WMM

                              WPS

                              WPA PSK/WPA 2-PSK

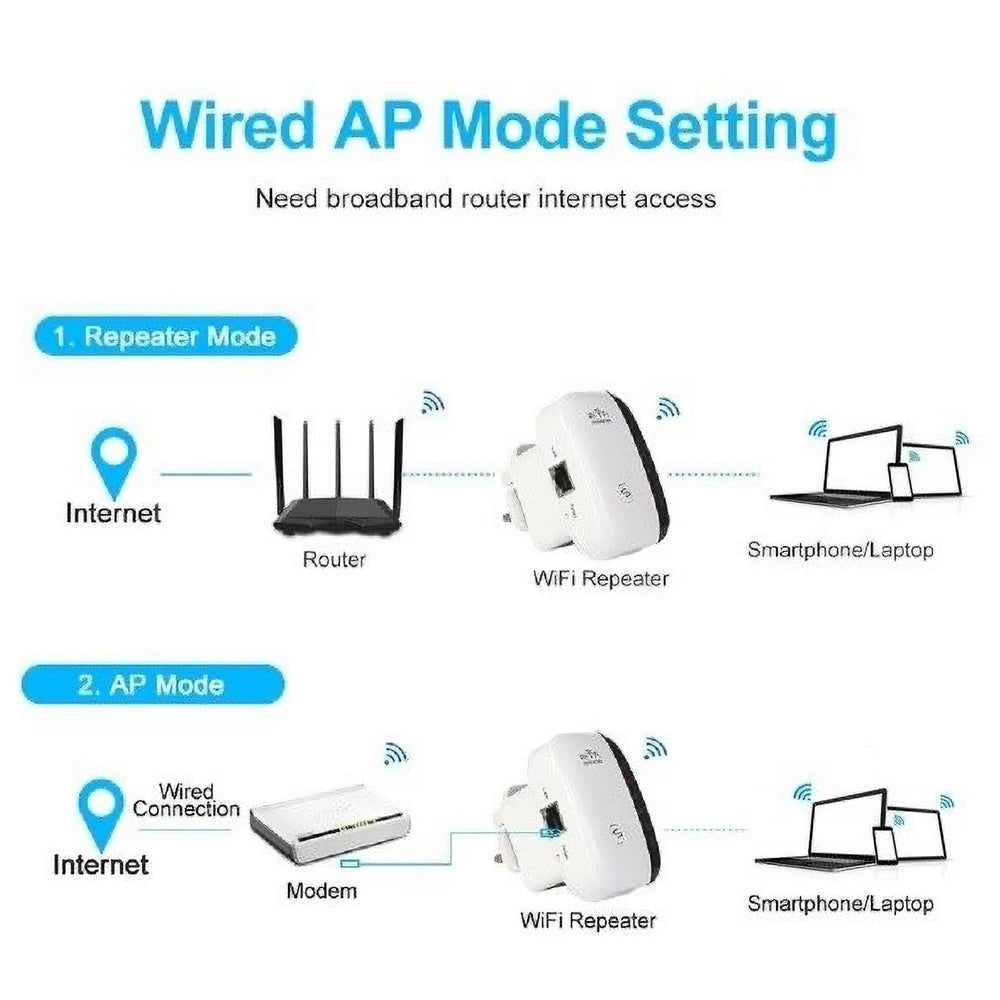

                              AP/Repeater mode

                              Adjusting transmission power

other

Working power supply: Output voltage range (VAC) 170-240 V

                                      Output voltage (VDC) 5V==1A

Working temperature: Working temperature 0 ℃~40 ℃

                                     Storage temperature -30 ℃~70 ℃

Working humidity: Working humidity 10% to 90% RH without condensation

                               Storage humidity 10% to 90% RH without condensation
